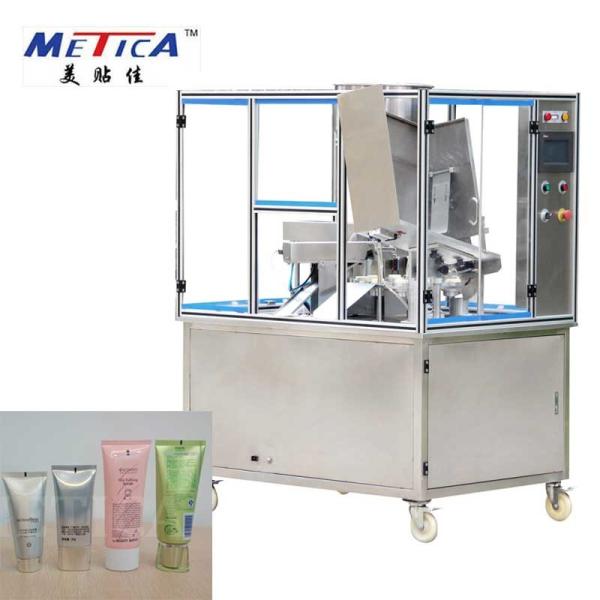

1.5kw Soft Tube Filling Sealing Machine

Name: 15kw Soft Tube Filling Sealing Machine
Brand: METICA
Price: 7000 USD

Wholesale 1.5kw Soft Tube Filling Sealing Machine from china suppliers

Brand Name : METICA

Model Number : MTGF-20

Certification : CE

Place of Origin : Shanghai

MOQ : 1 SET

Price : USD 7000-9000/SET

Payment Terms : L/C, T/T

Supply Ability : 100 SETS PER MONTH

Delivery Time : 15-30 days

Packaging Details : Fumigation-free wooden boxes that meet international standards

Name : Laminated Soft Tube filling and sealing machine

Application : Cosmetics and food, chemical etc...

Capacity : 500-1500 BPH(related to filling volume)

Qualified rate : more than 99%

Machine size : 1300*950*1700 mm³

Warranty : one-year warranty

Feature : PLC control,Automatic filling,sealing and tail cutting, Ultrasonic sealing

Hopper volume : 30 to 40 L

Voltage : 110V/220V, 50/60Hz

Automatic grade : Automatic run

Type : tube filling sealing machine, tube packing machine

Weight : approx 300kg

Contact Now

Automatic Laminated Soft Tube Ultrasonic Soft Tube Filling And Sealing Machine

Application:

This machine is designed for plastic and composite soft tube filling and sealing. Fully automatic load tube, filling, sealing and tail cutting
It works for both liquid and sticky products like hand sanitizer, cream, tooth paste and so on
As long as the materials is not very thick, same machine can work for both plastic tube and plastic aluminium composite tube.

Feature:

it has tube orientation mechanism to locate the tubes position
It is controlled by PLC and operate on color touch screen, easy to set up and change filling volume.
The filling volume is adjustable on touch screen. It can fill 5-50ml, 50-300ml liquid or sticky products.
The sealing way is ultrasonic, it works stable, and have advantages over heating sealing: low temperature, no impact from materials stuck to the tubes, reduce the empty space in the tube, sealing result is better.
It can print date or batch number as required. The number of letter can be set as required.
It has automatic tube positioning and identify function. It automatically identify front and back side by the color mark

Work flow:

Put tubes on tube loading box→tube feeding and locating→tube orientate automatically→tube filling automatically→ultrasonic tube sealing→tube end cutting automatically→tube eject out automatically.

Parameter:

Speed	500-1500 BPH(related to filling volume)
Filling volume	5-50ml or 50-300ml(customizable)
Filling accuracy	more than 99%
Ultrasonic power rate	1.5KW
Power supply	220V 50hz 1.5kw
Air supply	0.6 MPa
Machine size	13009501700mm³
Feature	PLC, touch screen, ultrasonic sealing, hopper

1.5kw Soft Tube Filling Sealing Machine

Samples display:

1.5kw Soft Tube Filling Sealing Machine
